Direct Burial Factory Price Loose Tube 2-288 Fiber Optic Cable

Basic Info

Model NO.	GYTY53
Application	Fiber Optic Cable
Conductor Material	None
Cover Material	PE/HDPE/Lzsh
Type	Optical Fiber Cable
Material Shape	Round Wire
Conductor Type	Solid
Wire Core Material	Steel
Certification	CE, ISO
Model	GYTY53
Brand	Jinlong
Name	Direct Buried Optical Fiber Cable
Number of Cores	2--288
Outersheath	PE
Color	Black
Install Temperature	-40--+70
The Way	Direct Buried
Transport Package	Wooden Drum, Iron-Wooden Drum
Specification	ISO9001
Trademark	Jinlong
Origin	China(Mainland)
HS Code	8544700000
Production Capacity	2000km/Month

Product Description

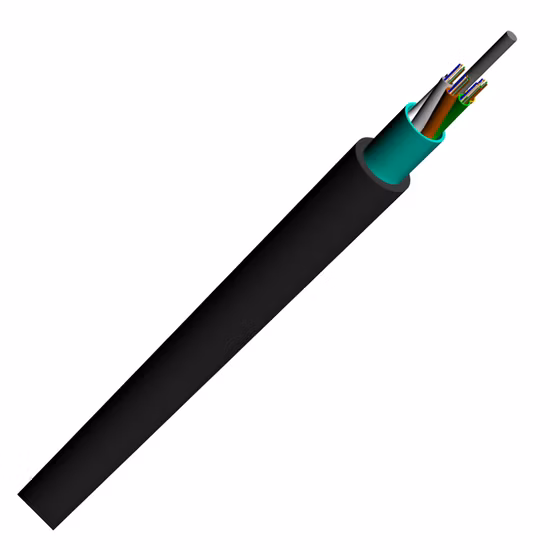

Direct Burial Factory Price Loose Tube 2-288 Fiber Optic Cable

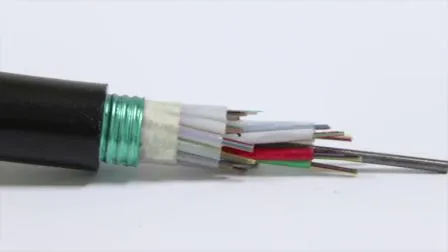

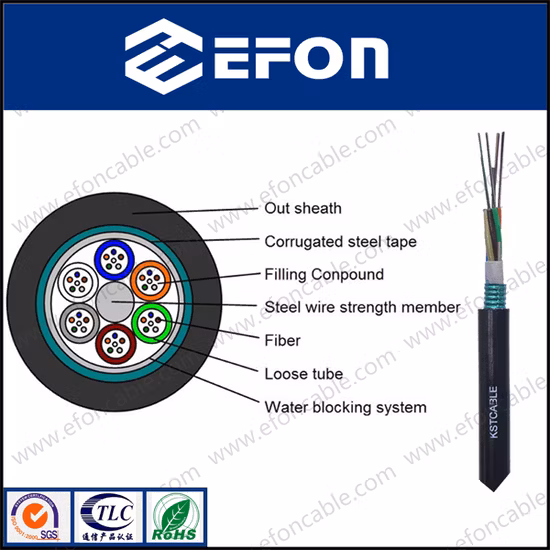

Mentalic free fiber cable, Non-metal strength member, loose tube stranded type, gel filled, PSP- Polyethylene(PE) sheath.Direct buried optical fiber cableGYTY53

Fiber count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max fiber Per tube	No. of (tube+fillers)	Allowable Tensile load Long/short (N)	Allowable Crush resistance Long/short (N/10cm)
2-36	12.7	173	6	7	3000/1000	3000/1000
38-72	13.9	211	6	6	3000/1000	3000/1000
74-96	15.5	251	12	8	3000/1000	3000/1000
98-120	17.2	299	12	10	3000/1000	3000/1000
122-144	18.8	345	12	12	3000/1000	3000/1000
> 144	Available upon customer' s request
