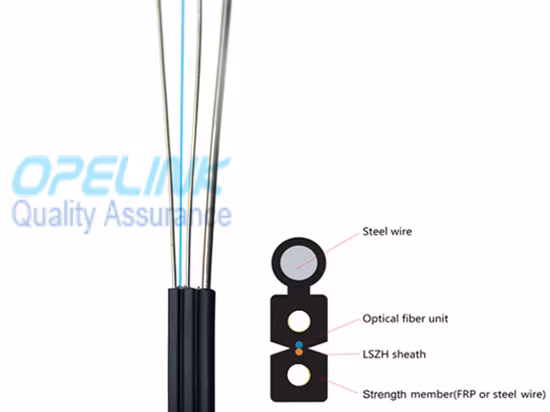

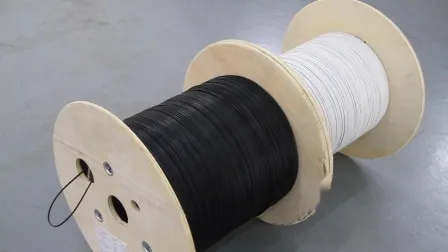

FTTH Indoor 1/2/4 Core Self-Supporting PVC/LSZH Eight-Shape Multicore Optical Fiber Cable for Communication

Basic Info

Model NO.	Self-Supporting Eight-Shape Fiber Cable
Core	Multicore
Certification	RoHS, CE, ISO9001, CCC
Brand	OEM
Sheath Material	PVC
Nominal Weight	9kg, 11kg
Crush Resistance	300~1000
Tensile Strength	200~600
Temperature Range	-20~70 Degree
Fiber Core	G652D, G657A1
Cable Shape	Flat, Round
Count	1 Core, 2 Cores, 12 Cores, etc.
Reinforcement	Metal, FRP
Fiber Jacket	PVC, LSZH
Jacket Color	White, Black
Transport Package	Carton Box
Specification	FTTH drop cable
Trademark	Opelink
Origin	China
HS Code	85447000
Production Capacity	50000km/Core

Product Description

PVC/LSZH FTTH Eight-Shape Multicore Fiber Cable Finished PartIndoor Optical Fiber Cable 1/2/4core Self-Supporting

Feartures:

Adopt fiber with small bending radius (G.657),
offering good bending resistance;
Adopt all-dry structure and fiber with small bending radius,
offering good bending resistance;
Easy cable stripping without need of tools, easy cable fixation
and low cost of installation.


Application:
As FTTH cable,for indoor horizontal and vertical cabling;
Indoor cabling under carpet and along corner.
Outdoor cable suitable as cable extending from outdoor (as aerial cable)
to indoor;

Technical Parameters:

Outer diameter(mm)		5.2x2.0(2)	6.0x2.0(4)
Nominal Weight(kg/km)		20.0	21
Crush Resistance (N/100mm)Long/Short term		300 1000	300 1000
Tensile Strength(N) Long/Short term		200 600	200 600
Min.Bending Radius(mm)	Dynamic	30H
	static	15H
Temperature Range		-20ºC-70ºC

Order Information:

Fiber Core	Fiber Type	Count	Cable OD	reinforcer	Fiber Jacket	Jacked Color
1=G652D 2=G657A1 3=G657A2 4=50/125 5=62.5/125 6=OM3 7=OM4 X=other	S=simplex Z=zipcord Duplex Y=Round Duplex F=Flat Duplex B=Breakout D=Distribution R=Ribbon A=Armored W=Waterproof X=other	001=1 core 002=2 cores 003=3 cores 024=24 cores XXX=other	01= 0.9mm 02=2.0mm 03=3.0mm 04=2.9*6.0mm 05=1.9*3.1mm 06=4.2*7.6mm 07=9.0mm 08=11.2mm 09=4.0*7.0mm XX=other	1=Kevlar 2=FRP 3=Armoured steel tape 4=Steel wire 5= Armoured steel tape & Steel wire	PR=PVC-OFNR PP=PVC-OFNP LH=LSZH PE=PE PU=TPU LN=Nylon HT=Hytrel xx=other	01=Blue 02=Orange 03=Green 04=Brown 05=Slate ,06=White 07=Red 08=Black 09=Yellow 10=Violet 11=Rose 12=Aqua 13=12 Color XX=other

----------------------------------------------------FAQ---------------------------------------------------

Q1. Can I have a sample order for this product? What' MOQ of it?
A: Yes welcome send sample order for test. MOQ is 1 piece.

Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks.

Q3: What' s the payment term
A: We usually use TT(Telegram Transfer) in advance, Western Union. Other payment method is negotiable.

Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5: What' s the freight of it?
A: It depends on the order quantity. We have some reliable ship forwarders. We will offer cost effective method for you.

Q6: Do you offer guarantee for the products?

A: Yes, we offer 1-2 years warranty according to different products.

Q7: What action will you take if there are some product problems?
A: If there are defective ones in the batch of products, we will offer spare ones for.
